Power Consumption: 20W

Power Supply: AC220V～240V, 50/60Hz

Dimensions: 484 × 390 × 88mm

Weight: 7.5kg

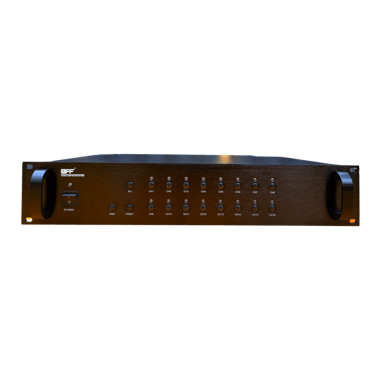

Design: Standard 19-inch rack mount, user-friendly layout

Amplification: Four power amplifier channels and one emergency output channel

Matrix Outputs: 16-zone matrix output, expandable up to 300 zones in multiple stages

Zone Indicators: Each of the 16 zones is equipped with an independent LED indicator to display operational status. In case of an alarm or forced switching, the LED changes from green to red.

Alarm Signal Output: 16 short-circuit alarm outputs send signal to the next 16 zones

Control Options: Can be controlled by an intelligent central controller and computer software to activate/deactivate specific zones at scheduled times

Manual Operation: Supports manual alarm/forced switching activation using a soft-touch button
