Power Consumption: 10W

Communication Protocol: RS485

Communication Interface: RJ45

Dimensions: 345 × 210 × 80mm

Weight: 1.1kg

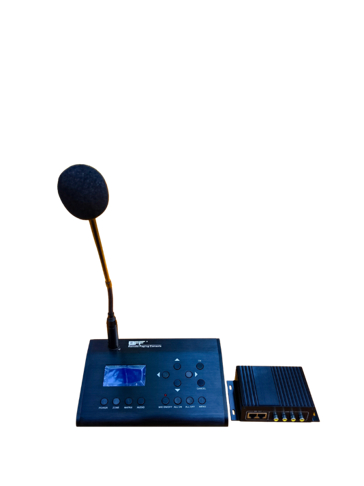

Desktop design with black alumina brushed panel, elegant and modern appearance, crafted with high-quality workmanship.

LCD screen and zone indicator lights display the operational status of each zone. Equipped with 16 numeric keys and function buttons for easy operation.

Includes buzzer reminder function and volume adjustment.

One microphone input channel (MIC) with independent volume control.

Expandable up to 8 remote paging microphones, supports broadcasting with a maximum cable length of 1km.

Supports emergency broadcasting with two paging microphone interfaces.

Utilizes balanced transmission mode for long-distance audio delivery.

Supports remote power on/off, master volume control, and remote zone paging. Up to 8 units can be connected and operated together.
