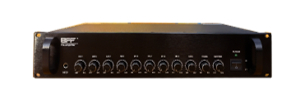

1.19 inch standard cabinet design, humanized design

2.10 input channels (5-channel microphone, 3-channel line, 2-channel emergency input)

3. Microphone input channel (MIC) and line input channel (AUX) can be adjusted independently.

4. Independent treble and bass adjustment;

5. On-off buffer, delay output protection function

6. Three-level priority design: MIC1 is the highest priority, emergency audio signal (EMC) is the second level, MIC2, 3, 4, 5 and line (AUX1, AUX2, AUX3) are the third level

7. Emergency audio signal input has no volume adjustment and automatically mutes at 30 dB.

Input： Microphone input (MIC) 600 Ω 5mV, unbalanced

Emergency input (EMC) 10kΩ 330mV, unbalanced

Line input (AUX) 10kΩ 330mV, unbalanced

Output Line output 1.0 V

Frequency response 20 Hz ~ 20 kHz (± 3 dB)

Power consumption 30W

Power supply AC220V～240V 50/60HZ

Dimensions 484×390×88mm

Weight 7.5kg.
