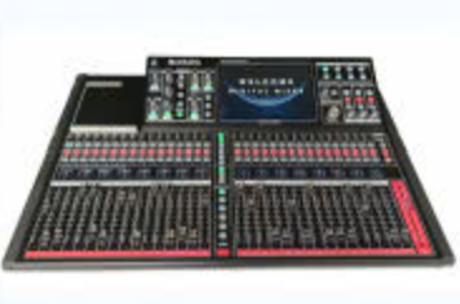

Dedicated digital console. Total input and output:

Support 58 input signals and 28 output signals

Local input/output:

42 signal inputs (38 analog + 4 digital)

(32 MIC/Line inputs, 2 sets of 3.5 Lotus stereo inputs, 1 set of 3.5 stereo headphone input interface, 2 sets of digital inputs: sound card, MP3, AES digital input)

20 signal outputs

(L, R main output, 4 SUB group outputs, 10 Aux1-10 sub outputs, 1 stereo headphone monitoring output, AES output). ･+48V phantom power (MIC channels can be turned on and off independently, participate in scene saving)

•･Independent feedback suppressor of mic input channel, effectively suppresses howling

•･Each input channel has built-in compressor, noise gate, phase, high and low pass filter, 5-band parametric equalizer, delay and channel audio and image balance adjustment

•･Channel parameters quick copy function

•･Each channel is equipped with multi-function menu, mute and monitor

•･Channels are equipped with 100MM electric faders (33 ALPS faders)

•･Independent physical fader control of input, output and effect channels

•･Each channel fader supports user-defined layer function

•･Two fader layer page knobs (switching input, output and effect fixed fader, operation more convenient and faster operation)

•･8 customizable physical buttons

•･8 DCA groups, 8 .

Size: 910*515*245 MM (

Net weight: 18.25kg
